ConfUSIus and Xarray 101¶

This example demonstrates how to use ConfUSIus to load and handle fUSI data as DataArray instances. We will use a small subset of the Nunez-Elizalde 2022 dataset and use a few basic Xarray operations to inspect, subset, and summarize the data.

Fetch one recording from the Nunez-Elizalde 2022 dataset¶

ConfUSIus provides convenient functions to download public datasets. The data is cached after the first download, so subsequent runs will be faster. The fetch_nunez_elizalde_2022 function allows you to specify which subjects, sessions, tasks, and acquisitions to download. Here we select one recording from subject CR022, session 20201011, task spontaneous, and acquisition slice03.

from pathlib import Path

import matplotlib as mpl
import matplotlib.pyplot as plt
import xarray as xr

import confusius as cf
from confusius.datasets import fetch_nunez_elizalde_2022

# A transparent background looks better in the rendered notebook.
bg_color = mpl.colors.to_hex(mpl.rcParams["figure.facecolor"])

# Don't expand the data values in the notebook since these arrays can be large.
xr.set_options(display_expand_data=False)

bids_root = fetch_nunez_elizalde_2022(
    subjects="CR022",
    sessions="20201011",
    tasks="spontaneous",
    acqs="slice03",
)

Load the recording as a DataArray¶

The downloaded dataset is stored following the Brain Imaging Data Structure (BIDS), so we can use the bids_root path to construct the path to the desired recording. The confusius.load function reads any compatible fUSI file (NIfTI, Iconeus SCAN, Zarr, etc.) and returns a DataArray with the data values, coordinates, and metadata all in one instance. In the recording representation below, note the named dimensions, physical coordinates, and representative acquisition attributes attached to the array.

pwd_path = (
    Path(bids_root)
    / "sub-CR022"
    / "ses-20201011"
    / "fusi"
    / "sub-CR022_ses-20201011_task-spontaneous_acq-slice03_pwd.nii.gz"
)
data = cf.load(pwd_path)
data

xarray.DataArray

'sub-CR022_ses-20201011_task-spontaneous_acq-slice03_pwd'

time: 751
z: 1
y: 114
x: 80

dask.array<chunksize=(751, 1, 114, 80), meta=np.ndarray>

	Array	Chunk
Bytes	26.13 MiB	26.13 MiB
Shape	(751, 1, 114, 80)	(751, 1, 114, 80)
Dask graph	1 chunks in 1 graph layer
Data type	float32 numpy.ndarray

Coordinates: (4)

time
(time)
float64
10.61 10.91 11.21 ... 235.4 235.7
units :
s
volume_acquisition_reference :
start
volume_acquisition_duration :
0.3
```
array([ 10.608,  10.908,  11.208, ..., 235.095, 235.395, 235.695], shape=(751,))
```
z
(z)
float64
1.0
units :
mm
voxdim :
0.4000000059604645
```
array([1.])
```

y

(y)

float64

2.73 2.778 2.827 ... 8.142 8.19

units :: mm
voxdim :: 0.04831999912858009

array([2.73008, 2.7784 , 2.82672, 2.87504, 2.92336, 2.97168, 3.02   , 3.06832,
       3.11664, 3.16496, 3.21328, 3.2616 , 3.30992, 3.35824, 3.40656, 3.45488,
       3.5032 , 3.55152, 3.59984, 3.64816, 3.69648, 3.7448 , 3.79312, 3.84144,
       3.88976, 3.93808, 3.9864 , 4.03472, 4.08304, 4.13136, 4.17968, 4.228  ,
       4.27632, 4.32464, 4.37296, 4.42128, 4.4696 , 4.51792, 4.56624, 4.61456,
       4.66288, 4.7112 , 4.75952, 4.80784, 4.85616, 4.90448, 4.9528 , 5.00112,
       5.04944, 5.09776, 5.14608, 5.1944 , 5.24272, 5.29104, 5.33936, 5.38768,
       5.436  , 5.48432, 5.53264, 5.58096, 5.62928, 5.6776 , 5.72592, 5.77424,
       5.82256, 5.87088, 5.9192 , 5.96752, 6.01584, 6.06416, 6.11248, 6.1608 ,
       6.20912, 6.25744, 6.30576, 6.35408, 6.4024 , 6.45072, 6.49904, 6.54736,
       6.59568, 6.644  , 6.69232, 6.74064, 6.78896, 6.83728, 6.8856 , 6.93392,
       6.98224, 7.03056, 7.07888, 7.1272 , 7.17552, 7.22384, 7.27216, 7.32048,
       7.3688 , 7.41712, 7.46544, 7.51376, 7.56208, 7.6104 , 7.65872, 7.70704,
       7.75536, 7.80368, 7.852  , 7.90032, 7.94864, 7.99696, 8.04528, 8.0936 ,
       8.14192, 8.19024])

x

(x)

float64

-3.95 -3.85 -3.75 ... 3.85 3.95

units :: mm
voxdim :: 0.10000000149011612

array([-3.95, -3.85, -3.75, -3.65, -3.55, -3.45, -3.35, -3.25, -3.15, -3.05,
       -2.95, -2.85, -2.75, -2.65, -2.55, -2.45, -2.35, -2.25, -2.15, -2.05,
       -1.95, -1.85, -1.75, -1.65, -1.55, -1.45, -1.35, -1.25, -1.15, -1.05,
       -0.95, -0.85, -0.75, -0.65, -0.55, -0.45, -0.35, -0.25, -0.15, -0.05,
        0.05,  0.15,  0.25,  0.35,  0.45,  0.55,  0.65,  0.75,  0.85,  0.95,
        1.05,  1.15,  1.25,  1.35,  1.45,  1.55,  1.65,  1.75,  1.85,  1.95,
        2.05,  2.15,  2.25,  2.35,  2.45,  2.55,  2.65,  2.75,  2.85,  2.95,
        3.05,  3.15,  3.25,  3.35,  3.45,  3.55,  3.65,  3.75,  3.85,  3.95])

Attributes: (25)
qform_code :
1
manufacturer :
Verasonics
manufacturers_model_name :
Vantage 128
software_version :
Alan Urban Technology & Consulting (AUTC)
probe_manufacturer :
Vermon
probe_type :
linear
probe_model :
L22-XTech
probe_central_frequency :
15000000.0
probe_number_of_elements :
128
probe_pitch :
0.1
probe_focal_width :
0.4
probe_focal_depth :
8.0
power_doppler_integration_duration :
0.3
power_doppler_integration_stride :
0.3
clutter_filter_window_duration :
0.4
clutter_filter_window_stride :
0.3
clutter_filters :
['highpass:15Hz', 'svd:remove_first_15_components']
task_name :
spontaneous
task_description :
Spontaneous activity without explicit visual stimulation.
depth :
[0.0, 5.46016]
transmit_frequency :
15625000.0
compound_sampling_frequency :
500.0
plane_wave_angles :
[-10.0, -7.9, -5.8, -3.6999999999999993, -1.5999999999999996, 0.5000000000000018, 2.6000000000000014, 4.700000000000002, 6.8000000000000025, 8.900000000000002]
probe_voltage :
25.0
affines :
{'physical_to_qform': array([[1., 0., 0., 0.], [0., 1., 0., 0.], [0., 0., 1., 0.], [0., 0., 0., 1.]])}

ConfUSIus also registers a .fusi accessor on every DataArray, which exposes fUSI-specific helpers and methods. For example, we can inspect the sampling step along each dimension. Note that for this recording, the temporal step isn't defined because the time coordinate isn't regularly sampled. See the Working with Xarray guide for a broader overview of the accessor.

data.fusi.spacing

/tmp/ipykernel_3903/1348712392.py:1: UserWarning: Coordinate 'time' has non-uniform sampling; spacing is undefined.
  data.fusi.spacing

{'time': None,
 'z': 0.4000000059604645,
 'y': 0.04831999912858009,
 'x': 0.10000000149011612}

Lazy loading and when to compute¶

ConfUSIus loads recordings lazily, so the underlying array starts out as a Dask array. This is convenient for working with large datasets that don't fit in memory, such as large beamformed IQ data. However, lazily loaded arrays may be chunked in ways that are not ideal for all operations. For example, chunking across the time dimension is ideal for processing volume-by-volume (such as when visualizing a recording in napari), but it will make temporal operations (e.g., averaging over time, frequency filtering, etc.) less efficient. Thus, when working with smaller recordings that do fit in memory, it is often simpler to call .compute right after loading to get a regular in-memory array. This is not required, but it is recommended to make subsequent operations more straightforward.

data = data.compute()

Positional and coordinate-based indexing¶

Once the recording is in memory, we can keep using normal Xarray operations. A useful distinction is between .isel, which indexes by integer position, and .sel, which indexes by coordinate values.

first_50_volumes = data.isel(time=slice(0, 50))
first_50_volumes

Here we define a region of interest (ROI) in physical coordinates. This is often more meaningful than index-based slicing because the bounds are expressed directly in physical units (e.g., millimeters) rather than in terms of array indices, which may not be as intuitive to interpret.

roi = data.sel(y=slice(3.5, 7.5), x=slice(-2.0, 2.0))
roi

Plot a regional time course¶

To summarize the ROI over time, we average over the spatial dimensions. With Xarray, reductions such as .mean take dimension names like ("z", "y", "x") rather than integer axis indices, which makes the intent much clearer than the NumPy-style axis=(...) equivalent.

roi_trace = roi.mean(("z", "y", "x"))
roi_trace

xarray.DataArray

'sub-CR022_ses-20201011_task-spontaneous_acq-slice03_pwd'

time: 751

6.635e+04 6.656e+04 6.645e+04 ... 6.653e+04 6.783e+04 6.571e+04

array([66348.41 , 66557.016, 66450.04 , 67012.49 , 68144.78 , 68372.79 ,
       67921.1  , 68469.25 , 68890.71 , 67069.58 , 65436.324, 64262.84 ,
       65602.41 , 65938.49 , 66399.56 , 65153.65 , 63270.293, 65269.168,
       67039.164, 67905.305, 68734.445, 66779.84 , 65605.56 , 66292.42 ,
       67121.12 , 67980.32 , 68977.66 , 69240.414, 67765.61 , 66217.65 ,
       63970.117, 67184.92 , 68357.95 , 65556.1  , 65583.58 , 68190.2  ,
       67335.26 , 67154.64 , 66480.61 , 66404.164, 65663.086, 66078.74 ,
       65832.52 , 64738.445, 66136.05 , 63371.164, 62459.168, 63203.66 ,
       64275.445, 63713.633, 61376.543, 59790.59 , 57591.227, 55730.71 ,
       56647.2  , 54759.715, 51221.914, 52965.773, 55159.824, 57615.84 ,
       58986.402, 59964.27 , 60136.88 , 60874.65 , 58757.555, 58061.04 ,
       56182.293, 56041.047, 57076.32 , 58261.273, 56741.527, 56287.008,
       62313.113, 62347.316, 63996.84 , 64713.707, 63709.555, 60253.766,
       60759.66 , 56687.83 , 54837.04 , 53100.68 , 55049.348, 54970.59 ,
       55355.984, 57016.164, 57815.85 , 58763.09 , 57906.36 , 55199.902,
       52410.145, 53630.35 , 53393.18 , 53412.445, 52818.207, 52445.332,
       54071.344, 53151.9  , 55913.324, 54888.117, 53394.56 , 54705.332,
       54446.906, 51611.812, 53421.26 , 51009.047, 53835.297, 55573.95 ,
       54263.43 , 58182.863, 57732.68 , 57438.51 , 56453.465, 56926.09 ,
       57313.305, 59335.188, 58494.94 , 58023.418, 58466.703, 56910.598,
...
       62800.184, 64596.082, 60621.746, 58751.543, 57612.87 , 55740.2  ,
       53596.93 , 52002.83 , 52876.074, 51686.086, 52161.203, 52125.19 ,
       56288.27 , 55193.66 , 55703.406, 54894.25 , 54649.594, 55288.   ,
       53983.594, 55507.773, 55747.605, 55503.895, 57926.18 , 57712.594,
       57642.18 , 56274.074, 56258.555, 56250.11 , 57111.58 , 56504.676,
       57320.49 , 55064.59 , 55482.023, 54983.844, 55895.94 , 53971.42 ,
       53948.85 , 54405.176, 55606.496, 55052.133, 56424.19 , 57774.   ,
       60459.79 , 61509.203, 62188.14 , 62561.008, 61988.496, 62394.887,
       62853.71 , 62584.25 , 62289.47 , 60180.613, 58560.766, 59464.75 ,
       59374.035, 58590.332, 58315.652, 57802.043, 58368.395, 56826.805,
       58152.406, 59723.254, 60707.84 , 59914.598, 60431.367, 58878.004,
       58409.24 , 59576.805, 59844.785, 60277.582, 59497.55 , 58059.453,
       57816.06 , 57585.453, 60758.086, 59732.105, 60550.277, 61746.934,
       61891.395, 62957.465, 64076.844, 64144.215, 65131.863, 66848.12 ,
       69217.64 , 66896.79 , 67886.78 , 65924.86 , 66506.016, 66236.22 ,
       65263.81 , 66744.086, 63441.13 , 61573.98 , 61871.69 , 63669.99 ,
       65150.76 , 65755.06 , 65188.97 , 62844.523, 62633.242, 61690.93 ,
       60862.31 , 61990.387, 61120.254, 65677.25 , 67520.95 , 62751.688,
       62723.195, 63534.07 , 65492.758, 67111.61 , 66533.625, 67830.9  ,
       65706.05 ], dtype=float32)

Coordinates: (1)
- time
  (time)
  float64
  10.61 10.91 11.21 ... 235.4 235.7
  units :
  s
  volume_acquisition_reference :
  start
  volume_acquisition_duration :
  0.3
```
array([ 10.608,  10.908,  11.208, ..., 235.095, 235.395, 235.695], shape=(751,))
```
Attributes: (25)
qform_code :
1
manufacturer :
Verasonics
manufacturers_model_name :
Vantage 128
software_version :
Alan Urban Technology & Consulting (AUTC)
probe_manufacturer :
Vermon
probe_type :
linear
probe_model :
L22-XTech
probe_central_frequency :
15000000.0
probe_number_of_elements :
128
probe_pitch :
0.1
probe_focal_width :
0.4
probe_focal_depth :
8.0
power_doppler_integration_duration :
0.3
power_doppler_integration_stride :
0.3
clutter_filter_window_duration :
0.4
clutter_filter_window_stride :
0.3
clutter_filters :
['highpass:15Hz', 'svd:remove_first_15_components']
task_name :
spontaneous
task_description :
Spontaneous activity without explicit visual stimulation.
depth :
[0.0, 5.46016]
transmit_frequency :
15625000.0
compound_sampling_frequency :
500.0
plane_wave_angles :
[-10.0, -7.9, -5.8, -3.6999999999999993, -1.5999999999999996, 0.5000000000000018, 2.6000000000000014, 4.700000000000002, 6.8000000000000025, 8.900000000000002]
probe_voltage :
25.0
affines :
{'physical_to_qform': array([[1., 0., 0., 0.], [0., 1., 0., 0.], [0., 0., 1., 0.], [0., 0., 0., 1.]])}

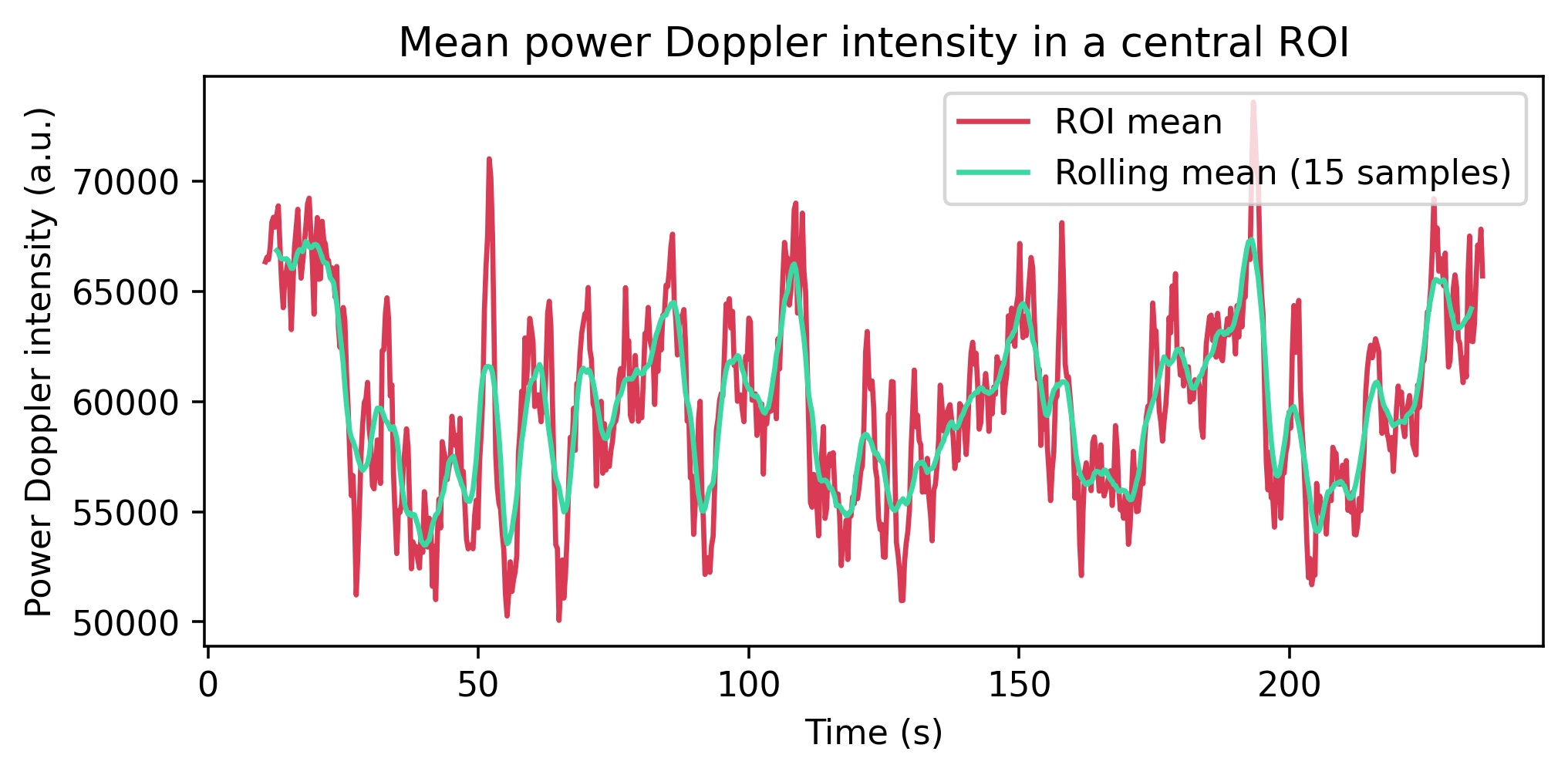

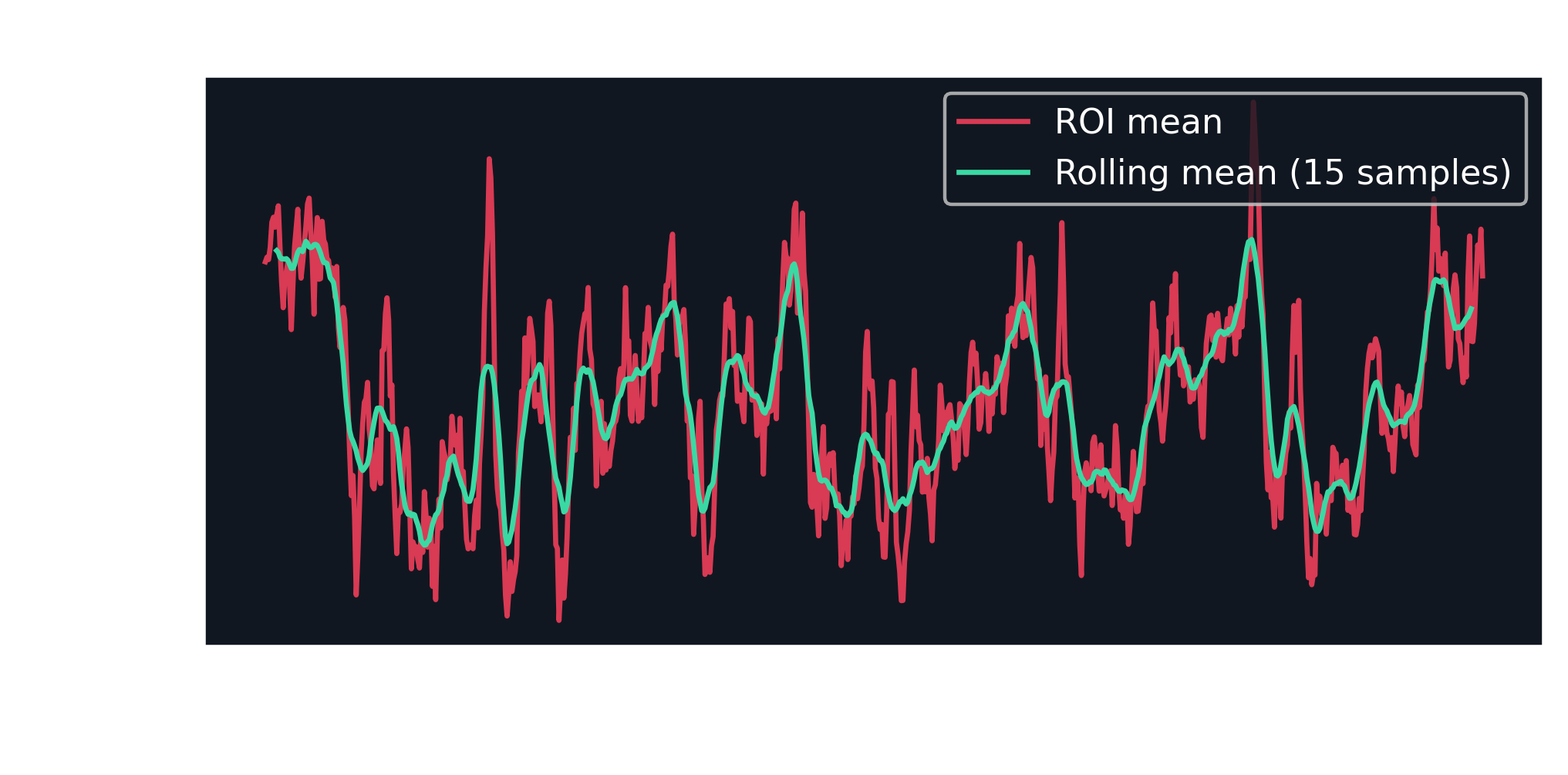

The resulting 1D DataArray keeps the time coordinate from the original recording, so plotting it with Xarray's built-in plotting function automatically uses the time values on the x-axis. As one slightly more advanced example, we can also compute a rolling mean with Xarray to smooth short-term fluctuations, while still keeping the same labeled time axis.

roi_trace_smooth = roi_trace.rolling(time=15, center=True).mean()

fig, ax = plt.subplots(figsize=(7, 3), facecolor="none")

roi_trace.plot(ax=ax, color="#d93a54", label="ROI mean")
roi_trace_smooth.plot(ax=ax, color="#3ad9a4", label="Rolling mean (15 samples)")

ax.set_title("Mean power Doppler intensity in a central ROI")
ax.set_xlabel("Time (s)")
ax.set_ylabel("Power Doppler intensity (a.u.)")
_ = ax.legend(loc="upper right")

Example output from cell 17, image 0

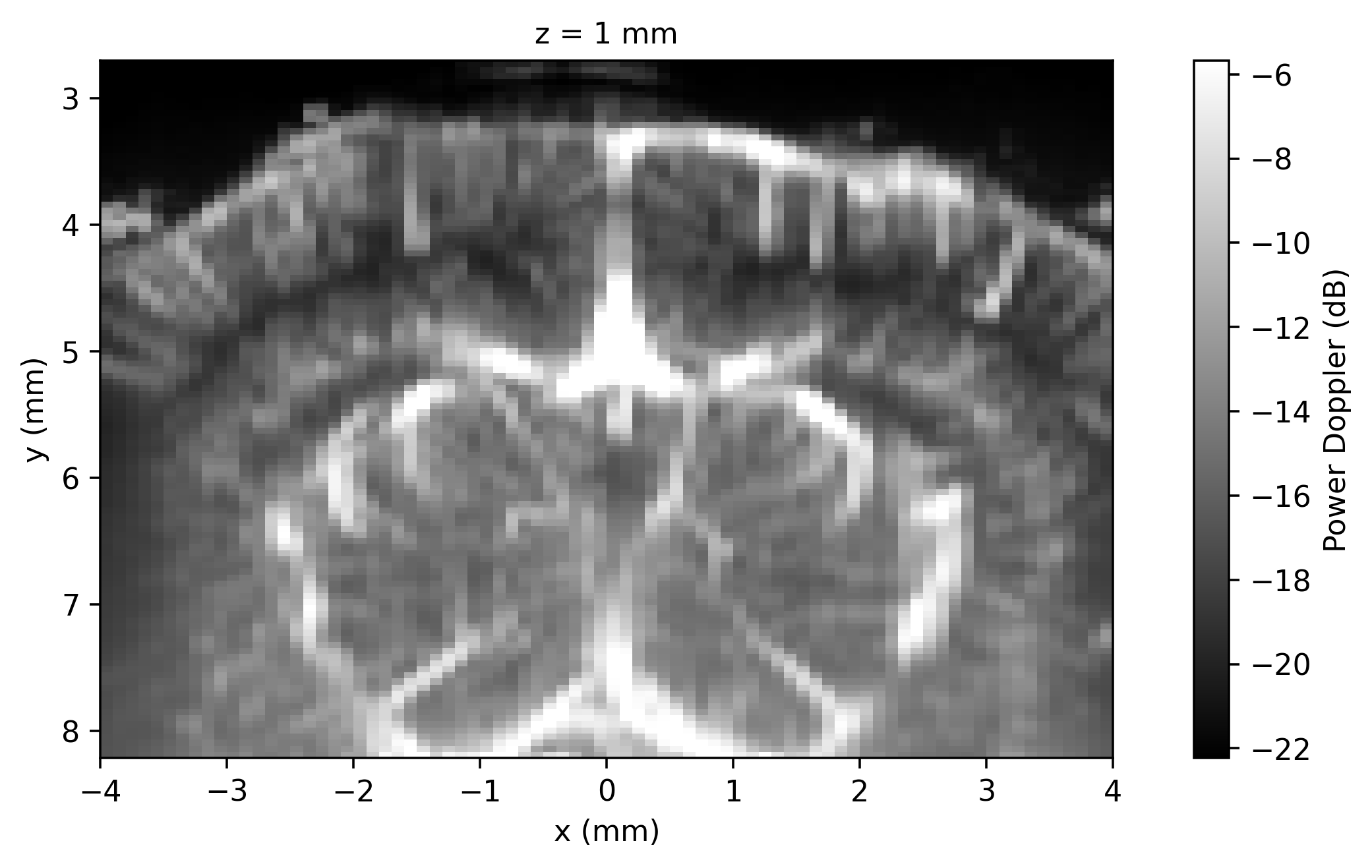

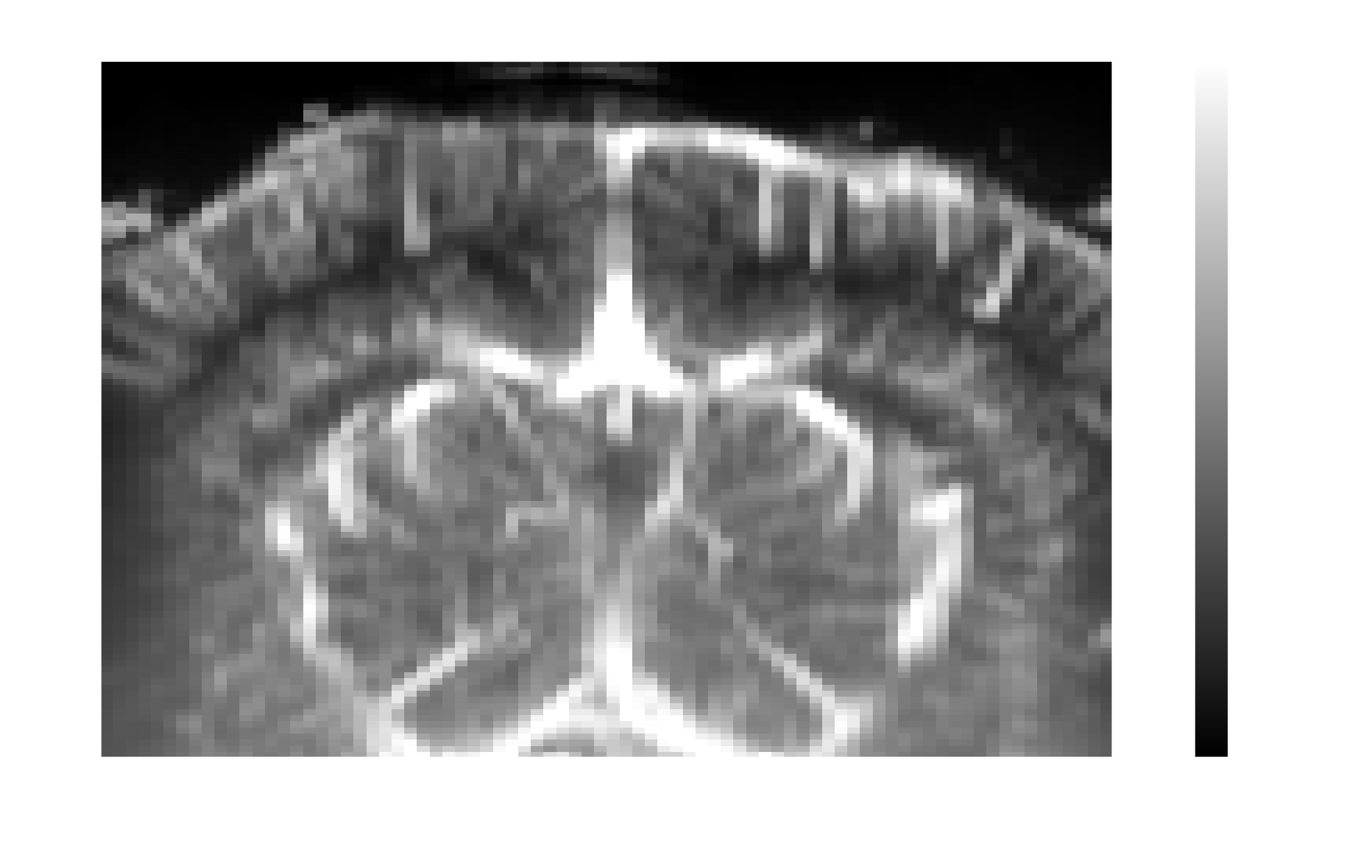

Compute and plot the mean power Doppler volume¶

This recording has a single brain slice, so averaging over time leaves a 2D image. We convert it to decibel-scale and display it using ConfUSIus's plot_volume and .fusi.scale accessors.

mean_db = data.mean("time").fusi.scale.db()

plotter = cf.plotting.plot_volume(
    mean_db,
    cmap="gray",
    cbar_label="Power Doppler (dB)",
    bg_color=bg_color,
)
# A transparent background looks better in the rendered notebook.
plotter.figure.patch.set_alpha(0)

Example output from cell 19, image 0

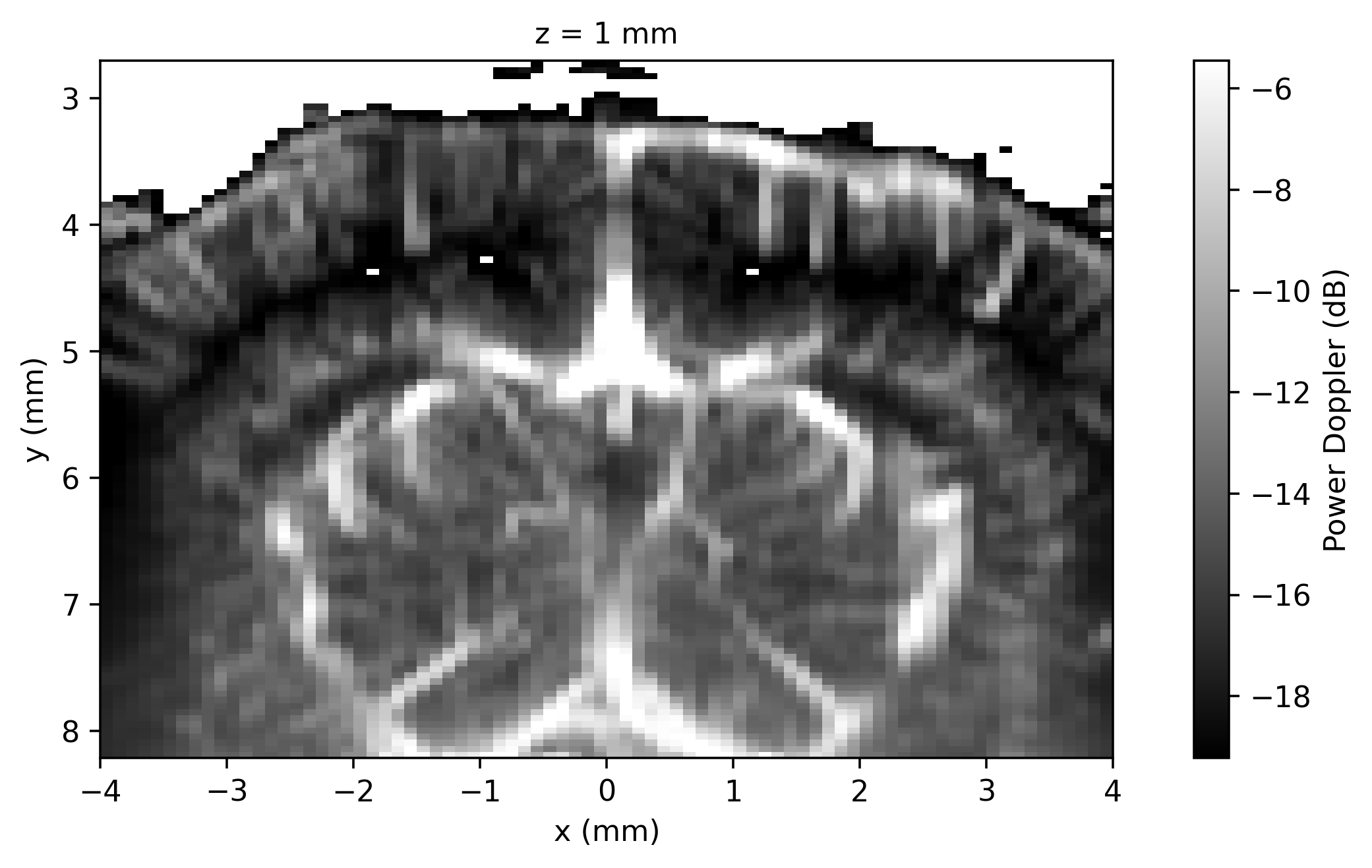

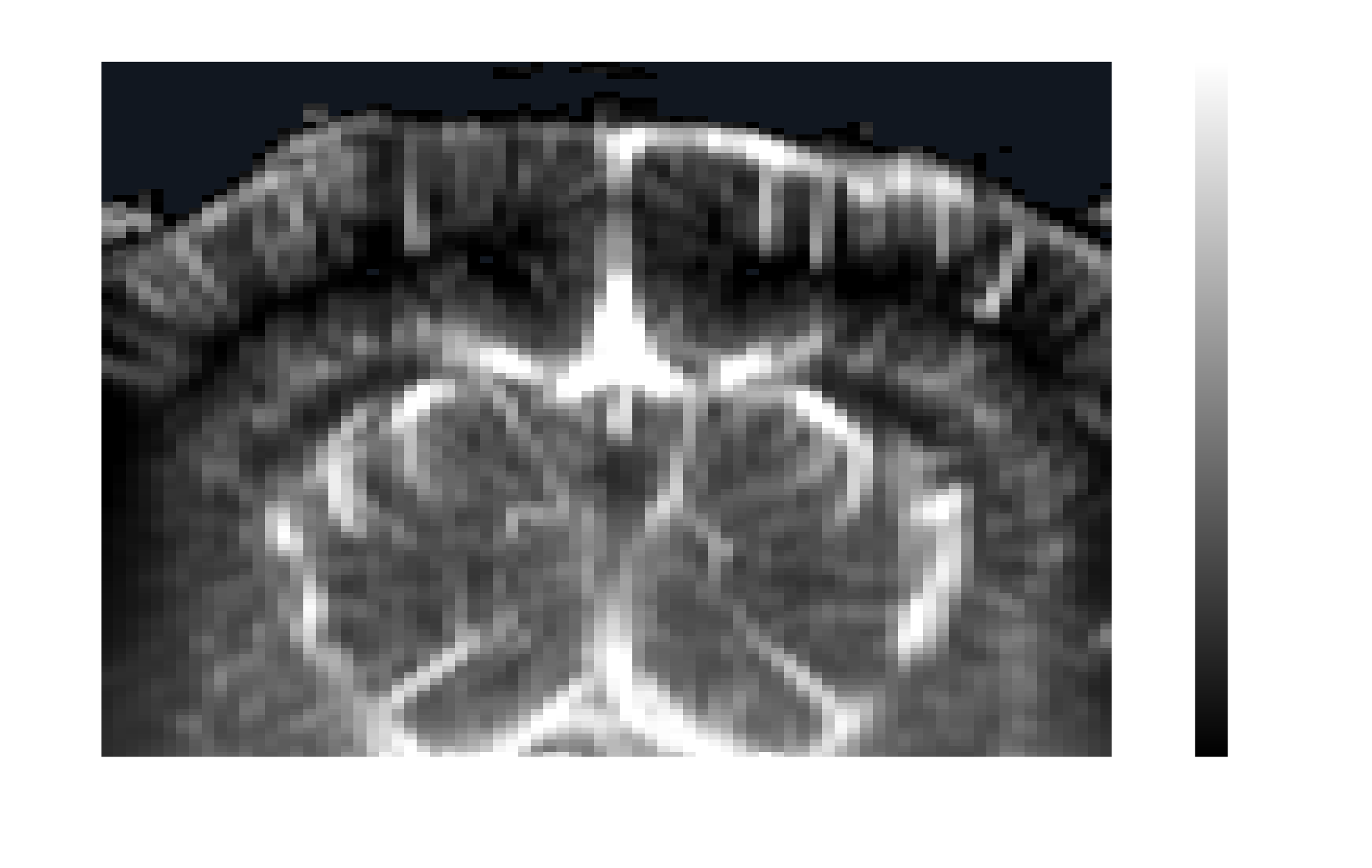

Mask low-intensity pixels with `where`¶

Xarray's .where keeps the same coordinates and dimensions while masking values that do not satisfy a condition. Here we suppress low-intensity pixels in the mean image before plotting it again.

mean_db_masked = mean_db.where(mean_db > -20)

plotter = mean_db_masked.fusi.plot.volume(
    cmap="gray",
    cbar_label="Power Doppler (dB)",
    bg_color=bg_color,
)
# A transparent background looks better in the rendered notebook.
plotter.figure.patch.set_alpha(0)

Example output from cell 21, image 0

Save a processed result¶

ConfUSIus can also save DataArrays back to disk through the .fusi.save method. For example, we can save the masked mean image as a NIfTI file.

mean_db_masked.fusi.save(
    "sub-CR022_ses-20201011_task-spontaneous_acq-slice03_desc-maskedmean_pwd.nii.gz"
)

Total running time: 9.3 s
